Description

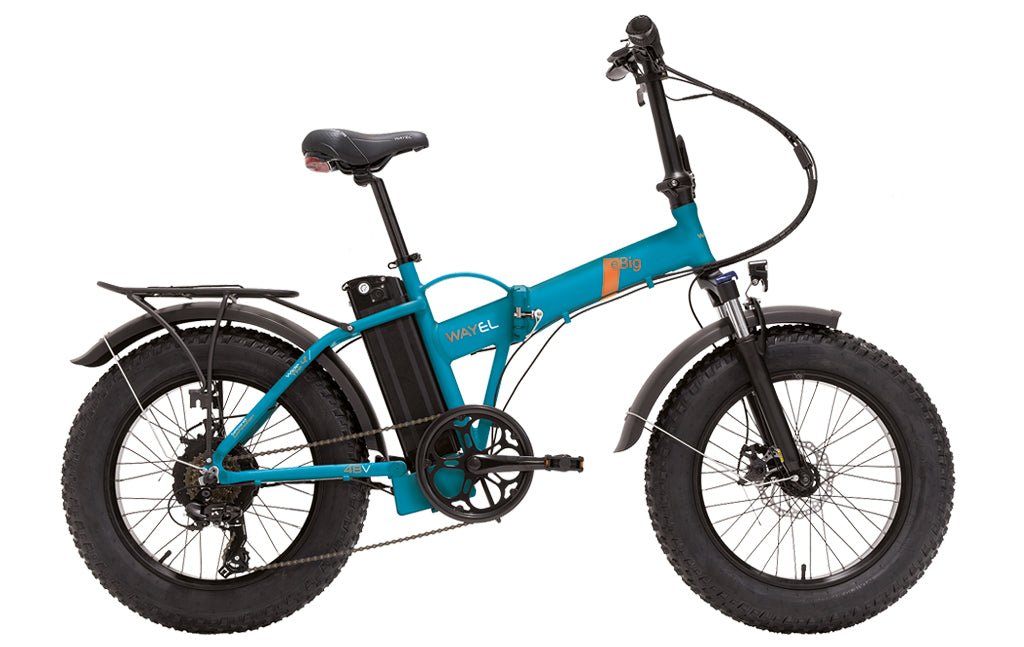

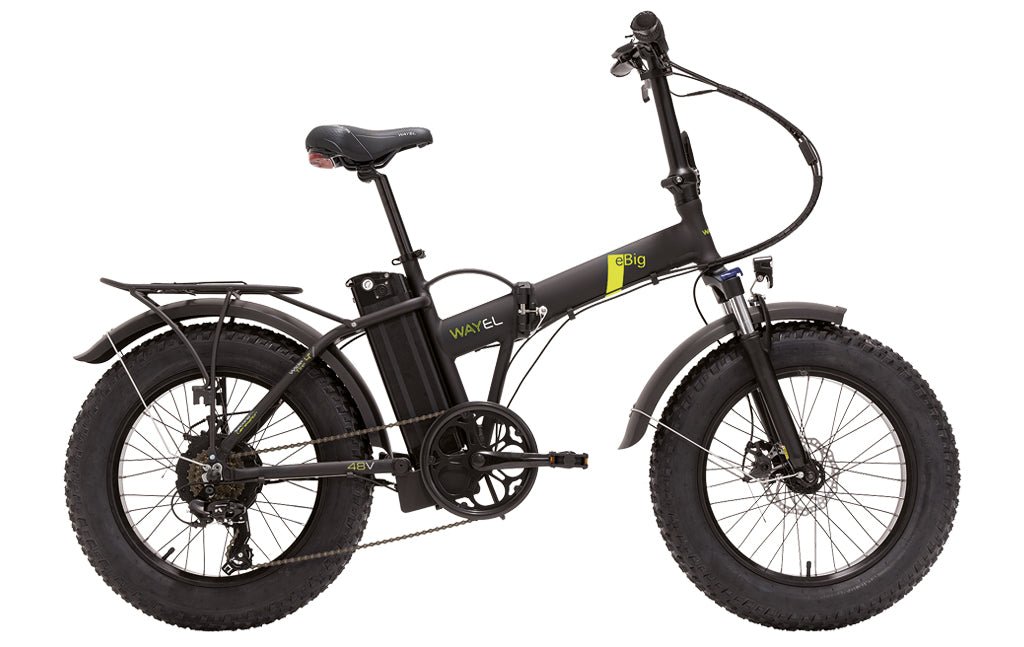

The Wayel eBig 48V is a folding 48V ebike with 20 x 4″ knobby fat tires, made by Wayel, Italwin’s sister brand from FIVE S.r.l. of Bologna, Italy. It suits riders who want a compact fat-tire bike that folds for storage and transport, with a 696 Wh battery for longer rides and a lockable suspension fork for sand, gravel and broken pavement.
Key specifications
- Frame: Folding aluminum frame
- Wheels/Tires: 20 x 4″ DSI knobby fat tires
- Motor: FIVE 48V rear hub motor, 250W, 45 Nm; integrated speed sensor
- Battery: 48V 14.5 Ah (696 Wh) lithium-ion, FIVE (Samsung/BAK cells)
- Range: up to 59 miles (95 km)
- Assist speed: pedal assist up to 15.5 mph (25 km/h), per the dueruote.it listing; 5 assist levels. Contact us to confirm the version supplied.
- Drivetrain: Shimano 7-speed, KMC chain
- Brakes: mechanical disc brake on the front wheel (Wayel does not list the rear brake type)
- Suspension: adjustable, lockable front suspension fork
- Display: backlit multifunction LCD with 5 assist levels and soft start
- Lights: battery-powered LED front and rear lights; Selle Bassano saddle with integrated light
- Weight: 57 lb (26 kg) without battery
- Max rider weight: 198 lb (90 kg), per Wayel’s 2022 and 2023 catalogues
- Folded size: 37.4 x 19.7 x 29.5 in (95 x 50 x 75 cm)
Specifications are the manufacturer’s published figures. Range depends on rider weight, terrain, assist level and temperature.
Buying from VoltyBike: flat $130 shipping within the US, 30-day returns and a 2-month VoltyBike warranty.
Comparing options? See our folding e-bike guide or browse all e-bike guides.
